How to configure Mikrotik routers to work with WiMAX modem

This demonstration is going to be simple and straight to the point. Let us assume that you have a local area network on which your network printer, file server and other network resources have been configured and are working properly with no internet access. Now you have a WiMAX modem through which you want your LAN users to have access to the internet. How do you integrate your WiMAX into your already configured Mikrotik setup. In this post, I will share with us on how to configure a mikrotik router to work with Wimax.

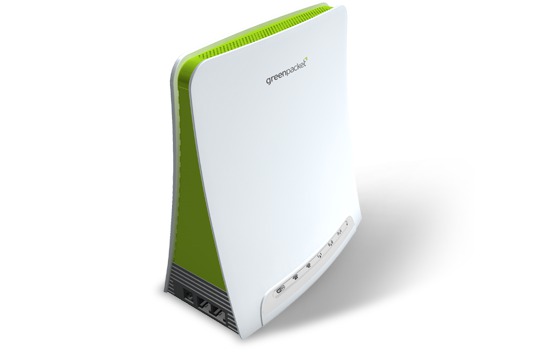

Image showing a Wimax modem
Your WiMAX, which comes with one or two ethernet ports, has been pre-configured with DHCP, default gateway and DNS. To get the Mikrotik to work with it, you need to provision a port on the Mikrotik as a dhcp client. This port will connect to the WiMAX and obtain IP address, subnetmask, default gateway and DNS server address from the. Assuming we want to use ether1 on the Mikrotik for this, the below commands will accomplish it.



[[email protected]] > ip dhcp-client add interface=ether1

Next, you need to bridge the remaining ports on the Mikrotik (assuming you have no switch and the LAN users are few).

[[email protected]] > interface bridge add name=bridge1

Then, add ports to the bridge

[[email protected]] > interface bridge port add interface=ether5 bridge=bridge1
[[email protected]] > interface bridge port add interface=ether4 bridge=bridge1
[[email protected]] > interface bridge port add interface=ether3 bridge=bridge1
[[email protected]] > interface bridge port add interface=ether2 bridge=bridge1

Configure a network for the bridge.
[[email protected]] > ip add add address=192.168.1.1/24 interface=bridge1
Configure dhcp server for the bridge:
[[email protected]] ip dhcp-server> setup.
Select interface to run DHCP server on: dhcp server interface: bridge1
Select network for DHCP addresses: dhcp address space: 192.168.1.0/24
Select gateway for given network: gateway for dhcp network: 192.168.1.1
Select pool of ip addresses to be given out by DHCP server: addresses to give out: 192.168.1.2-192.168.1.254
Select DNS servers: dns servers: 192.168.1.1
Select lease time: lease time: 3d
Next, configure NAT for your LAN users, else your local IP wont be “routable” through the WiMAX network.
/ip firewall nat
 add chain=srcnat src-address=192.168.1.0/24 action=masquerade
Configure default route on the Mikrotik to forward unknown-destination traffics  to the WiMAX modem
[[email protected]] > ip route add dst-address=0.0.0.0/0 gateway=ether1
That’s all.
